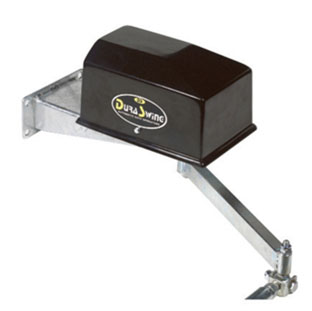

Standard Features:
-  GATE ACTIVATION: Remote Control, Intercom, Key Switch
-  SAFETY FEATURES: Anti-crushing, Infrared Beam (Optional)
-  AUTOMATIC CLOSING: Adjustable from 5 secs to 75 secs
-  PEDESTRIAN OPENING: Opens both gates partially and closes automatically after 6 secs (Optional)
-  EXTERNAL LIGHT OUTPUT: Facility for switching lighting on for 4 min after operation (Optional)
-  TOWNHOUSE PROGRAMME: Extra safety feature for townhouse developments
-  BATTERY BACKUP: Operates gate during a power failure
-  MANUAL RELEASE: Disengage arms from gates in the event of an emergency
-  PARTY MODE: Temporarily overrides auto-close feature (Optional)
-  MOUNTING: Can be bracket or pedestal mounted (Extra)

Technical Data:
-  Motor Voltage: 12v DC
-  Output Torque: 120Nm
-  Peak Motor Power: 120 watts
-  Backup Mode: 50 operations
-  Opening Time: 12 to 15 sec (depending on the opening angle)
-  Maximum Gate Size: 2.4m/200kg per leaf
-  Physical Size: Each machine 310 (L) x 210 (W) x 180 (H)

Summary: 12v DC, up to 2.4m/200kg per leaf, battery back-up standard, pedestrian access (optional), 12-15 seconds opening time, 1 year warranty, 2 remotes, can be bracket or pedestal mounted (extra).

Standard Features:
-  GATE ACTIVATION: Remote Control, Intercom, Key Switch
-  SAFETY FEATURES: Anti-crushing, Infrared Beam (Optional)
-  AUTOMATIC CLOSING: Adjustable from 5 secs to 75 secs
-  PEDESTRIAN OPENING: Opens both gates partially and closes automatically after 6 secs (Optional)
-  EXTERNAL LIGHT OUTPUT: Facility for switching lighting on for 4 min after operation (Optional)
-  TOWNHOUSE PROGRAMME: Extra safety feature for townhouse developments
-  BATTERY BACKUP: Operates gate during a power failure
-  MANUAL RELEASE: Disengage arms from gates in the event of an emergency
-  PARTY MODE: Temporarily overrides auto-close feature (Optional)
-  MOUNTING: Can be bracket or pedestal mounted (Extra)

Technical Data:
-  Motor Voltage: 12v DC
-  Output Torque: 120Nm
-  Peak Motor Power: 120 watts
-  Backup Mode: 50 operations
-  Opening Time: 12-15 sec (depending on opening angle)
-  Maximum Gate Size: 2.4m/200kg per leaf
-  Physical Size: Each machine 310 (L) x 210 (W) x 180 (H)

Summary: 12v DC, up to 2.4m/200kg per leaf, battery back-up standard, pedestrian access (optional), 12-15 seconds opening time, 1 year warranty, 2 remotes, can be bracket or pedestal mounted (extra).

Electromagnetic gear motor, surface mounted with magnetic encoder. Ideal for residential use.

Reliable and Durable: Features an aluminium housing, made up of two tough aluminium shells with polyester paint finish making it more resistant to atmospheric agents.
Internal moving parts completely in steel, light alloys and technopolymers.
Patented layout of internal parts and lead nut in bronze.

Simple Installation: Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.
Simple to program with a single button, allowing programming of pause timing, with built-in capacitor.
Fully compatible with Nice’s Solemyo solar power kit and Opera management system for GPRS and Bluetooth connectivity / operation.
Integrated Nice BlueBUS technology, allowing connection to up 12 devices with just two cables.

Safety Features: Dual technology obstacle detection.
Soft start/stop to ensure long life of motor.

Electromagnetic gear motor, surface mounted. Ideal for residential use. Also available in 24V (DC) version, with magnetic encoder.

Reliable and Durable: Features an aluminium housing, made up of two tough aluminium shells with polyester paint finish making it more resistant to atmospheric agents.
Internal moving parts completely in steel, light alloys and technopolymers.
Patented layout of internal parts and lead nut in bronze.

Simple Installation: Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.
Simple to program with a single button, allowing programming of pause timing, with built-in capacitor.

Safety Features: Dual technology obstacle detection.
Soft start/stop to ensure long life of motor.

Electromagnetic gear motor, surface mounted. Ideal for residential use. Also available in 24V (DC) version, with magnetic encoder.

Reliable and Durable: Features an aluminium housing, made up of two tough aluminium shells with polyester paint finish making it more resistant to atmospheric agents.
Internal moving parts completely in steel, light alloys and technopolymers.
Patented layout of internal parts and lead nut in bronze.

Simple Installation: Generously sized and practical connection compartment: rapid and easy access from above to internal parts located in the upper section of the motor.
Simple to program with a single button, allowing programming of pause timing, with built-in capacitor.

Safety Features: Dual technology obstacle detection.
Soft start/stop to ensure long life of motor.

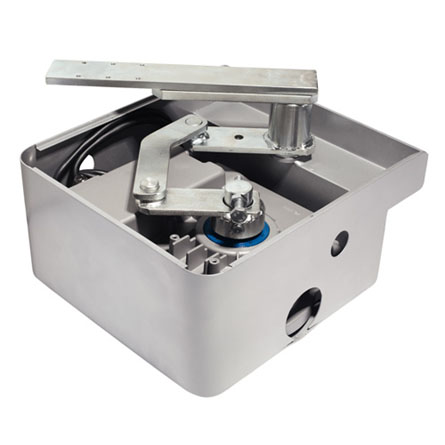

A new brand in home automation, a new name among underground motors for swing gates: LIFE introduces Ergo. This product range, as complete as it is innovative, offers an extensive choice of solutions: from the 230V version, with slow or fast movement, to the 24v version. Moreover, it guarantees all the quality of a state of the art design, all the duration and solid quality of the best materials, all the safety and functional quality of an evolved electronic system. Those who choose LIFE open the door to the future of automation.

Quality lies underneath

Ergo means more quality and attention given to detail, all combined in a system bound to last through time. The structure is a high density aluminium die-cast, which guarantees a superior lightness and inalterability. The gear motor’s case is made of a die-cast and varnished with epoxy powders. The regularly shaped foundation box is made in galvanized steel with a copper ingredient to help it preserve through time. The thick bottom part has some drainage holes with plastic caps to avoid debris infiltration during installation. The actuator rests on two supports at a height of 20mm, to avoid piling up of dirt and allowing an easier maintenance.

A perfect machine

The release mechanism is perfectly protected from water and soil infiltrations. Plus, even though its use is foreseen as rare, the release mechanism has been designed to be carried out with maximum ease, simplicity and safety. As per other LIFE models, Major is equipped with an integrated system composed by an optical “encoder”, which detects any obstacle along the gate’s way, even sudden ones, and an electronic control unit which activates any required safety measure in real time. Specific “limit switch” devices can also be added to the encoder, in order to have a quick response under any circumstance. Opening of the swing from 90° to 110° is controlled by a system with an easily adjustable hexagonal screw; the same convenience is also adapted during the closing phase.

Cleverly predisposed

LIFE simplifies the everyday work of the “workers involved”: the Ergo model, in fact, is provided with clear assembly instructions that are complete and intuitive, following and assisting installation step by step. In addition, you have a quality capable to satisfy even the most demanding user, plus, a range of made to measure services. Enter the new world of home integration; it has never been so easy

ER4 UNI
ER4B
ER424 UNI

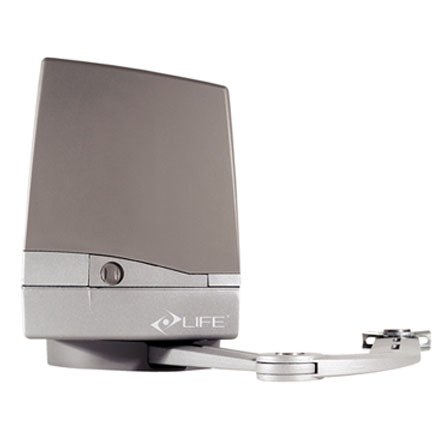

LIFE opens new perspectives in the world of automation: even for the swing gates sector. In fact, the family of electromechanical gear motor ARMOR offers a wide range of choice in the 24Vdc versions with DIGITAL LIFE TECHNOLOGY. This is the result of high level designing and manufacturing, aligned with the most evolved and demanding quality, design and functionality standards on the present market. But that’s not all find out all the benefi ts of this and the other LIFE products: open up to a new era in “integration”.

A novelty designed to last

ARMOR models are designed and manufactured without losing quality. The structure is made of a high density aluminium diecast, a material as light as inalterable. The external shell, one of LIFE’s distinguishing features, is undeformable. Drive shaft and main machinery lie on oversized ball-bearings, bronze bushings and gauge, in order to guarantee the best resistance through time.

Instant safety

ARMOR has an alert eye and a clever brain: the encoder, the electronic control unit and the limit switches. The encoder monitors the gate’s functioning and instantly detects any object or person that should cross its ray of action. The electronic control unit elaborates all the information and enables in real time the most appropriate safety measures. As safety is never too much, ARMOR also comes with two “limit switches” that send another precise signal about the gate’s positioning.

Simple installation, immediate integration

DIGITAL LIFE TECHNOLOGY interface and protocol allow a simpler installation of photocells, transponder, digital selectors and other command devices. New devices are immediately acknowledged, due to the “plug and play” system: therefore the system can be updated and expanded at any time. You only need three steps to configure the installation: a clever instrument that always provides an answer to your installation and user requirements under any condition. With LIFE’s quality, design and customized services you will reach the higher levels of technical satisfaction.

AR224 UNI DL
AR024

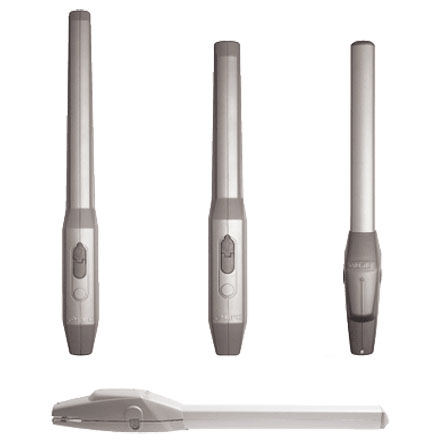

LIFE inaugurates new perspectives in the world of automation, even in the field of swing gate motors. The Optimo range of linear electromechanical actuators offers a wide range of choice between the 230 V and 24 V versions, with slow or fast movement. This is partnered by a high level of design and manufacturing, in line with the most evolved quality, design and functional standards on the market. There is more to discover for you, all the advantages of this and other LIFE products and open up to a new era in “home integration”.

Instant safety

Optimo has a vigilant eye and a quick brain, namely the optical “encoder”, the electronic control unit and the limit switches. The encoder keeps the gate operating under control and instantly detects any object or person that should suddenly invade its operative area. The electronic control unit processes all information and activates the most appropriate safety measures in real time. As safety can never be too much, Optimo is also fitted with two “limit switch” devices that send a further precise signal of the gate position.

Protection in every season

The release mechanism is perfectly sheltered from water, and other agents infiltration. Though its use is rarely required, the release mechanism has been designed to be activated with ease, quickness and safety, offering extra convenience.

Cleverly arranged

The Optimo gear motor is already equipped with a power cable and a signalling cable, both one meter long, to make electrical connections simpler and quicker: moreover, it also comes with an internal cabling system which facilitates maintenance. The assembling brackets are solid, modular and smart, ideal for solving any installation requirement. Mounting instructions are clear, simple and intuitive, assisting the installer through all stages of his work. LIFE has designed everything to the finest detail, including a charming design and a range of customized services.

OP3 SL UNI
OP3 UNI
OP5 UNI
OP224 UNI
OP324 UNI
OP524 UNI
