Genius Milord 424ENV Slide Gate Motor

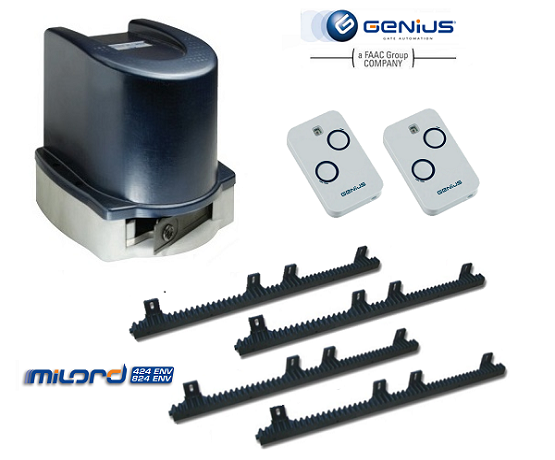

GENIUS MILORD 424ENV Slide Gate Motor
The MILORD 424 is a non-reversible electro-mechanical gearmotor suitable for automating sliding gates for residential use.
Feature & Benefits:
– The gearmotor body in die-cast aluminium and the protective housing in ABS make it a solid, safe product.
– The lever-operated release system enables manual leaf movement.
– The innovative magnetic limit-switches system makes Milord a highly qualified product.
– Suitable for automating sliding gates with weight up to 400kg
Technical Specifications:
| Power supply voltage | 230Vac |
| Electric motor voltage | 24Vdc |
| Current(A) | 3 |
| Rated Power (W) | 60 |
| Max. gate weight (kg) | 400 |
| Max torque(Nm) | 13.5 |
| Protection class | IP 44 |
| Speed (m/min) | 12 |
