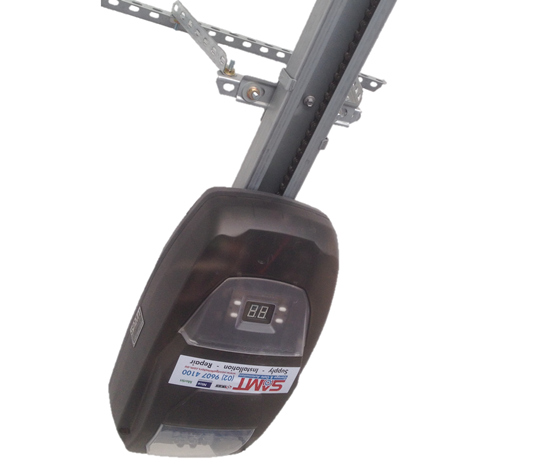

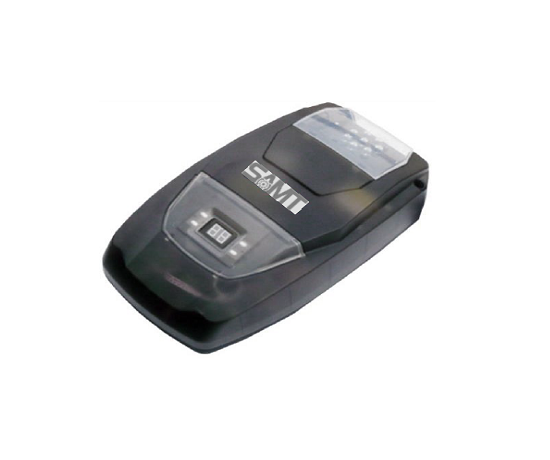

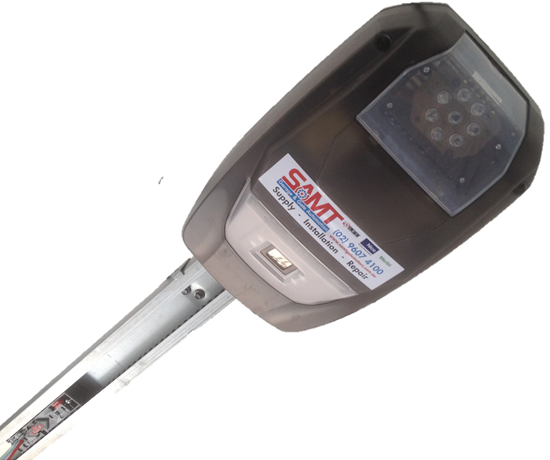

SAMT SGD 1100LG Sectional Door Motor

SAMT Garage Logo small


Our SAMT Sectional Door Opener sets new standards for sectional door openers, offering outstanding power and efficiency, as well as unrivalled safety and technology. Feature-packed in standard configuration and available with a host of innovative options, a sectional door system is not the best it can be without our SAMT SGD 1100LG Sectional Door Opener.


– Digital display and easy programming

– Soft start and stop, power, noiseless: gently accelerates the door during closing is especially useful when replacing openers on older garage doors where jams or door “booming” can often occur due to age-related loss of spring tension and/or friction of the door’s tracks

– Timely resistance detection by computer and precision travel positioning.

– Clutch with self-lock function

– Rolling code technology makes your door more secure by eliminating possible code interception and/or duplication

– UPS joint can connect reserve power once the power fails

– Automatic courtesy light, door unclosed alarm and automatic closing door function

– 2000 operation cycles maintain alarm


Technical Specifications:

– Voltage range: 220-240V

– Rated Power: 150W

– Maximum Driving Force: 1100N

– Maximum Speed: 110mm/s

– Drive: Enclosed Chain or belt driven
