BFT MAXIMA ULTRA 68 Boom Gate
* Roll over the image to zoom in

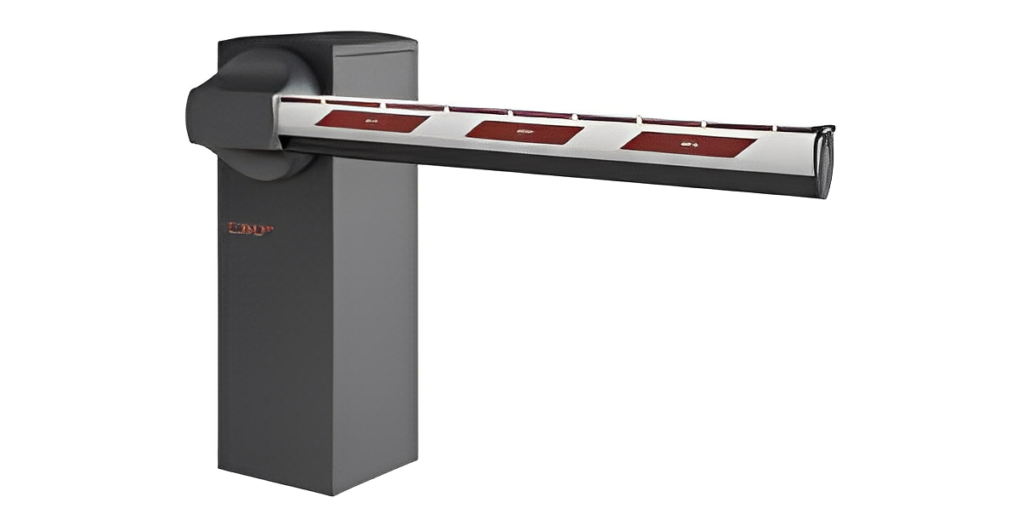

BFT MAXIMA ULTRA 68 Boom Gate
Range of professional 230Vac electromechanical barriers with speed variator and three-phase induction motor for high frequency of use. Designed and developed to operate in a wide variety of conditions such as large car parks, motorway tollgates with frequent reversing, industrial installations. Three-phase motor with inverter. Oil bath gear motor. Mechanical crankshaft movement (anti-vandalism system) which can deliver fluidity of movement and balance to the bar by also controlling its soft opening and closing. With U-Link protocol for integration with Parking Management or Building Management systems.
Features:
- U-link
- Rolling Code
- Inverter
- Inverter With Three-Phase Induction Motor
- Reduction Unit In Oil Bath
- Crank Handle System
- Three-Phase Induction Motor
- Inductive Encoder
Technical Specifications:
| Opening Time (depending on the width of the leaf) | from 4.5 to 6s |
| Clear Opening | from 4 to 8m |
| Control Unit | CSB Xtreme |
| Motor Type | Three-phase asynchronous |
| Motor Power Supply | 230V |
| Internal Lubrication | In oil bath |
| Inverter | Yes |
| Slowdown | Yes |
| Impact Reaction | Encoder |
| Locking | Mechanical |
| Release | Inside The Structure |
| Frequency Of Use | Very Intensive |
| MCBF (Mean Cycles Between Failures) | 2000000Op |
| Environmental Conditions | -30 ÷ 60°C |
| Protection Rating | IP54 |
