CAME GARD8 Automatic Barrier Gate

For passages of up to 7.6m.
Gard8 features innovative design features and is the latest in the line of automatic road barriers. It is the ideal solution to control roads and parking areas in industrial and collective settings. It comes in both the 230V and 24V versions.

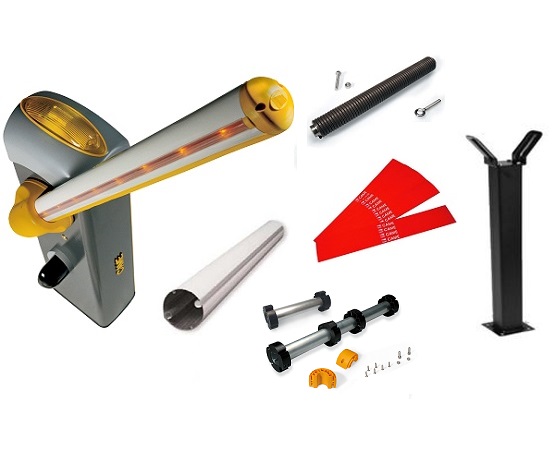

Kit Contains

1x G2080Z Steel Barrier Gate
2x G04000 4.0m arm with light cord profile
1x G06803 Joint Kit for boom arms
1x ZL38 Control Panel
2x G06080 55mm spring
1x G02809 Red reflective strips
1x G02807 Fixed support stand

Limit to Use

Composition of the bar

Max opening clearance

Bar

7.6m

Bar with mobile support

7m

Bar with luminous cord

7.6m

Bar with luminous cord and mobile support

7m

Bar with rack

7m

Bar with rack and luminous cord

7m

Technical Specifications

Type

G2081Z

G2080Z/G2080IZ

Protection rating

IP54

Power supply

230V 50/60 Hz

Motor power supply

230V 50/60 Hz

24V D.C.

Current draw

2.8A

15A

Max power

330W

300W

Max torque

250Nm

600Nm

Opening time 90°

4s

From 4 to 8s

Duty cycle

30%

Intensive use

Operating temperature

-20°C min. +55°C max.

Please message or call us to receive a quote with the updated price.
