Ditec ION 600 Slide Gate Operator

Ditec ION is a sliding-gate operating device for residential, commercial and industrial applications. It is designed to resist even under heavy use and demanding weather conditions.
With quick installation and easy maintenance, it is available in 2 different versions: 400 Kg and 600 Kg. The operating device features a built-in control panel and display.


Technical Specifications

Max leaf weight 600kg
Stroke control Limit switch +
Virtual encoder
Maximum opening 20m
Duty class 4 – heavy duty
Intermittent operation S2 = 30 min
S3 = 50%
Power supply 230Vac 50/60Hz
Motor power supply 24Vdc
Power input 1.5A
Thrust 600N
Opening and closing speed 0.1 – 0.24 m/s
Protection rating IP24D
Operating temperature – 20°C ~ + 50°C

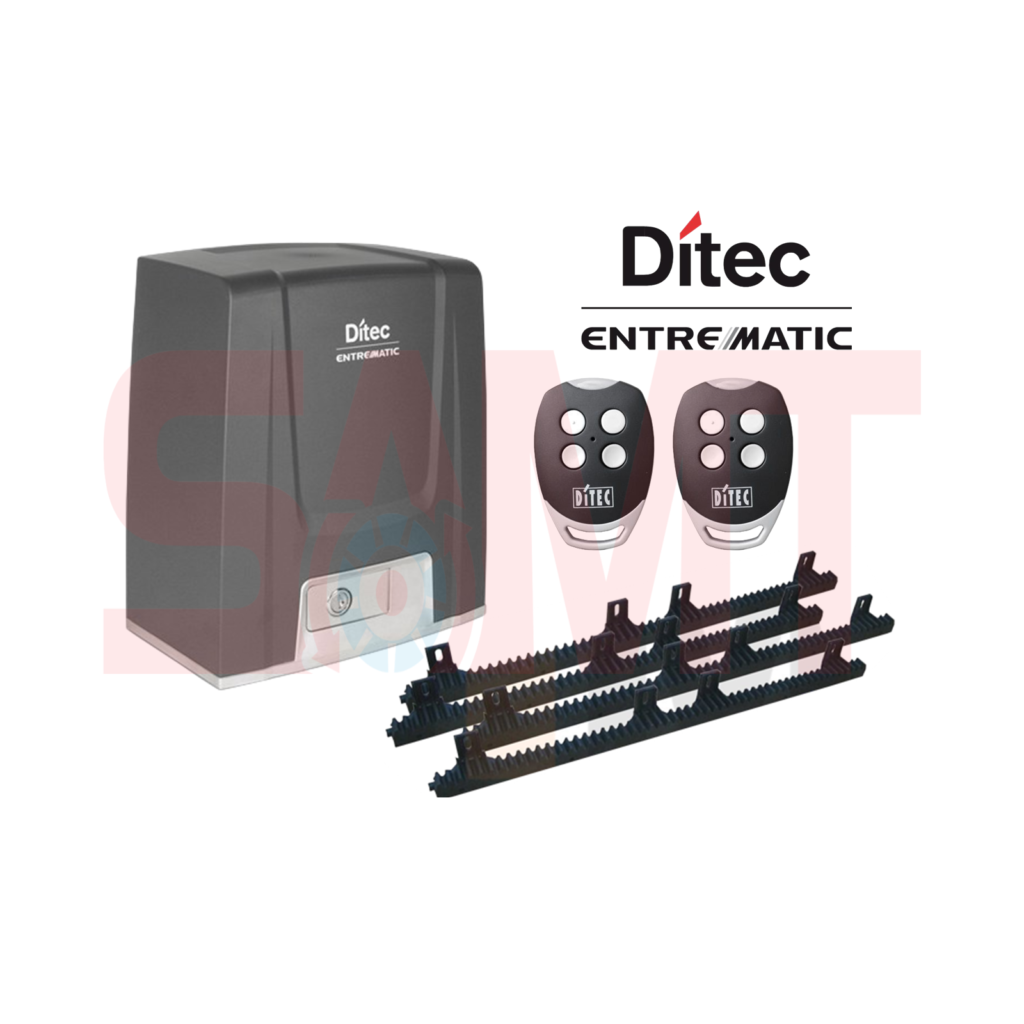

Kit includes:

-  Ditec NeoS 600 Slide Gate Operator
-  2 x Ditec GOL4 remotes
-  4m Nylon gear rack

Additional Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.


Optional Accessories:

- Magnetic limit switches

- Extra remotes

Photocell sensors
