FAAC C720 Slide Gearmotor

  • New mobile-axis reduction principle (FAAC PATENT)
  • Exceptionally high mechanical performance >80%
  • Control unit with anti-crushing device and electronic encoder with reverse function upon detection of obstacle.
  • Magnetic limit switches.
  • Master-Slave function for controlling 2 opposing leafs with an E721 board.
Gate Max Weight 400 kg
Power Supply 230 Vac 50Hz
Motor Power Supply 24 Vdc
Power 220 W
Absorbed Current 7 A
Electric Motor 3200 rpm
Max Torque 18 Nm
Thrust on Gate 320 N
Gate Speed 18 m/min (Z28 Pinion)
Operating Temperature -20°C to +55°C
Weight 8 kg
Limit Switch Magnetic
Protection Class IP44
Dimensions (L×D×H) 300×180×280 mm

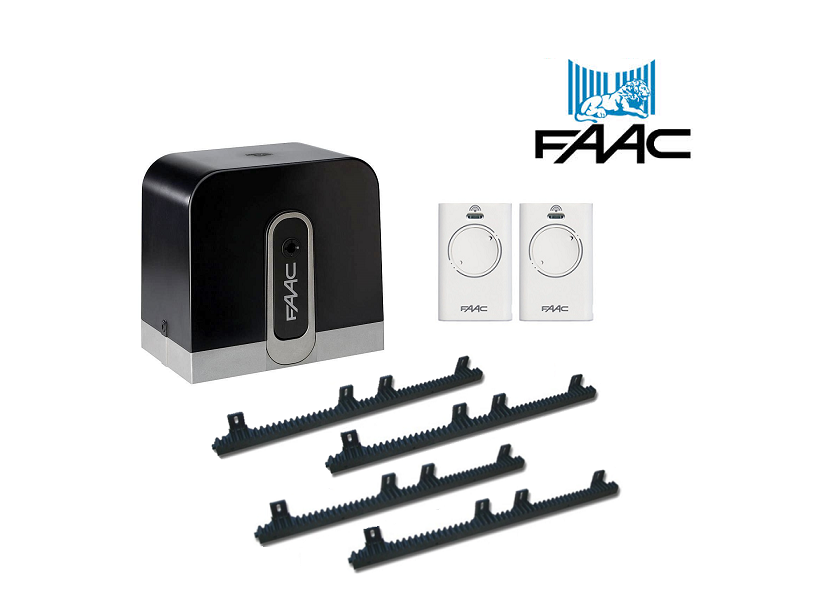

Kit Includes:

- FAAC C720 Slide Gearmotor

- 2 × 2 Channel Transmitters

- 4.0m Nylon Steel-reinforced gear rack

Additional Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.

Optional Accessories



Flashing light

- Mechanical Stop (Wall Ground)

Lock Cable Protector
