450 PL Industrial Commercial Heavy Duty Slide Gate Operator 800kg
* Roll over the image to zoom in

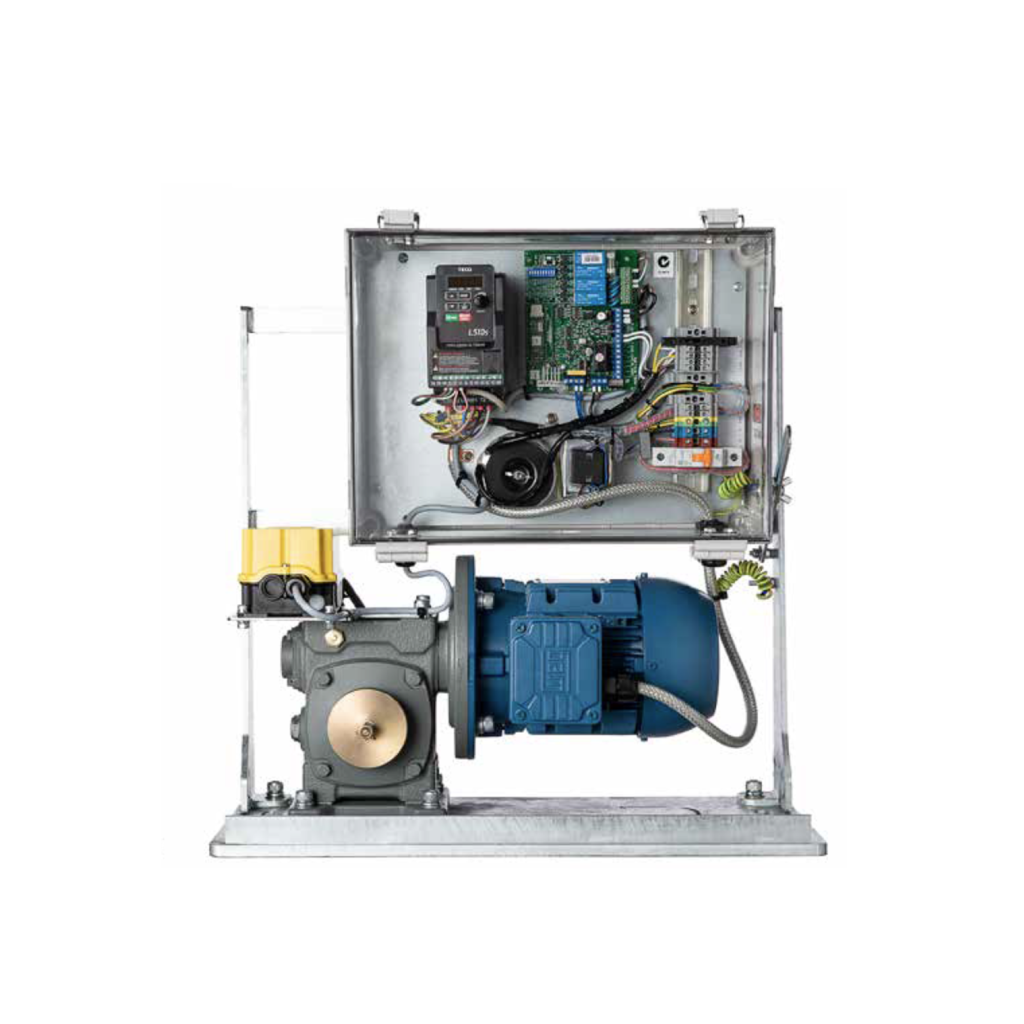

NEW Industrial Commercial 450 PL Heavy Duty Automatic Slide Gate Operator 800kg
Surface mounted for Industrial/Commercial slide gates with leaves up to 800kg, 8m
Single phase 240V inverter driven sliding gate operators are designed to provide the force and intensity of a Three phase motor with the convenience of single phase input.
Benefits and features:
- Industrial Sliding Gate Operator-Laser cut 10mm steel hot dipped galvanised chassis
- Cast iron industrial quality gearbox
- Industrial grade motor with inverter rated windings
- Strong Grade 316 stainless steel covers, other options include: 3mm hot dipped galvanised or 1.6mm high protection powder coat covers
- Unique mechanical torque limiter
- Easy disconnect facility
- Inbuilt controls under the main cover
- All controls and Inverters are prewired and programmed
- Inverter driven with a powerful microprocessor control board which allows maximum functionality which means they are easily adjustable ramp up/ramp down, opening/closing speeds for the ultimate experience in gate automation.
- Fast emergency stopping feature with inbuilt easy limits
- Cast iron industrial grade gearboxes
Specifications:
- Model: 450 PL
- Power Supply: 240V AC 10A
- Motor Power: 550W
- Speed: 450 mm/sec (Ramp up/Ramp down Feature)
- Linear Force: Up to 80kg
- Duty cycle: 100%
- Max Gate leaf Size: 800 kg, 8 m
Kit Contains:
- 1 x 450 PL Heavy Duty Commercial Slide Gate Operator (Control board Built in)
- 1 x Mounting Hardware
Optional Extras:
- Extra Remotes
- PhotocellsÂ
- Flashing Light LED
