MOFB Photocells
* Roll over the image to zoom in

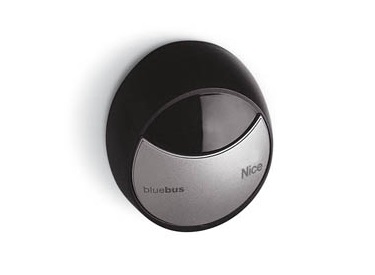

MOFB Photocells - surface mounted pair of photocells for connection by Nice BlueBUS
MoonBus MOFB Gate Photocells Fixed synchronised photocells with BlueBUS technology. The MOFB Photocells are obstacle detectors which make it possible to detect obstacles on the optical axis between a transmitter (TX) and a receiver (RX), type D according to Standard EN12453. They can be used in automations for gates and doors. These devices are equipped with a Nice BlueBUS communication system which makes it easy to connect all the devices up to the control units using two wires only. They are all quite simply connected up in parallel, and the addressed jumpers selected according to the function required.
Please note: The Nice MOFB has discontinued and been replaced with the NICE EPMB.
ManualDescription
| Model | Power supply/output | Adjustability of the Photocell | Estimated Range (m) | Protection Rating (IP) | Working Temp. (oC) | Dimensions (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| MOFB | The device can only be connected to "BlueBUS" networks, from which it receives its power supply and sends output signals | - | Up to 15m for a maximum TX-RX misalignment of +/-5?(the device can detect and signal an obstacle even in particularly bad weather conditions) | 55 | Min: -20 Max:55 | 69 x 25 x 78 | 50 |
