Baby Bolt-On Hinge BadAss Powder Coated
* Roll over the image to zoom in

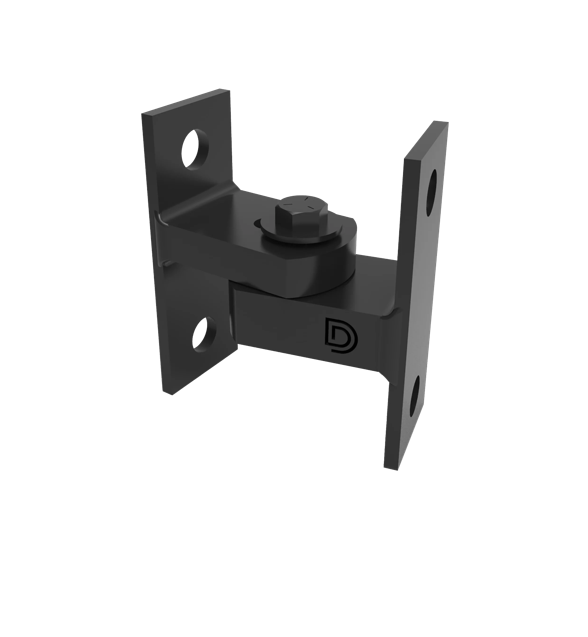

Baby Bolt-on Hinge Powder Coated

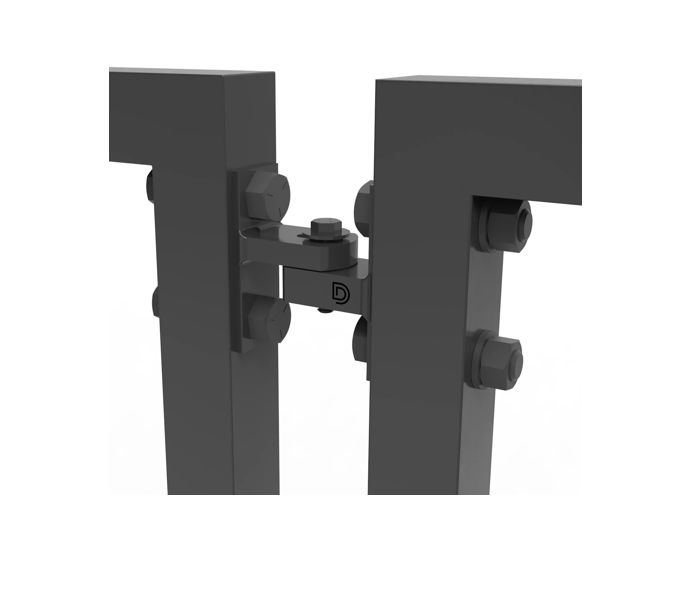

Like the Baby BadAss, this hinge Bolt-on Gate Hinge is CNC machined to the tightest tolerances in the industry. Unlike The Baby BadAss, The Bolt-On Bady BadAss was designed to be used on smaller gates where welding the hinges to the gate and the end post is not an option. The Bolt-On BadAsses produce near frictionless movement with maintenance free usage.
Designed for gates where welding is not an option
- Components individually powder coated for full coverage
- Impressive, long-lasting, UV-rated matte black finish
- Nuts, bolts, and washers black zinc plated for color match and corrosion protection
- No greasing, no maintenance. EVER!
- Horizontal adjustability for perfect installations
- Flat, bolt-on brackets for through bolting
- Zinc plated
- Load rating per gate: 270kg (600 lb)
- Maximum gate weight: 140kg (300 lb)

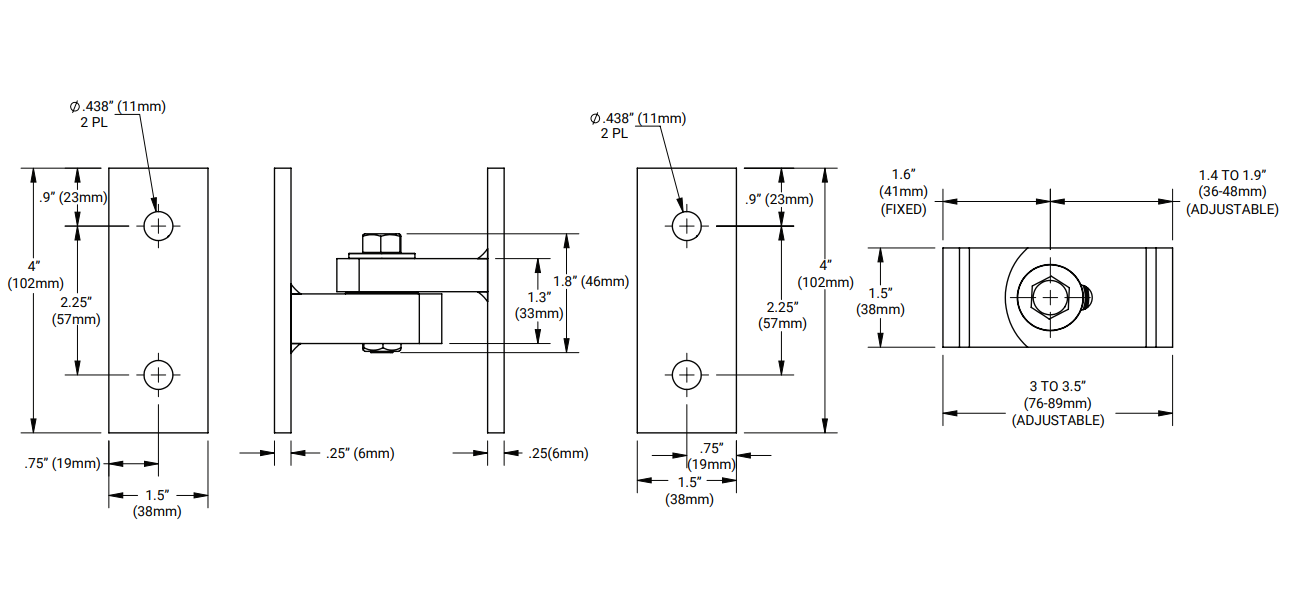

Specifications
| Gate Material | Steel / Ornamental Iron / Aluminum |
| Approx. Gate Size | 2m H x 3m W – (7ft x 10ft) |
| Gate Frame/Post Shape | Square-to-Square |
| Min Post Size | 38mm+ (1½") |
| Ideal Gate Gap | 76–89mm (3–3½") |
| Fixing Method | Bolt-On |
| Colour/Finish | Matt Black Zinc |
Includes:
1 x Baby Bolt-on Hinge Powder Coated
