BFT KUSTOS BT B25 KIT Double Leaf Swing Gate Opener 24V 400kg
* Roll over the image to zoom in
BFT KUSTOS BT B25 KIT Double Leaf Swing Gate Opener
For residential Swing gates weighing up to 400kg / 3m Long
Irreversible electromechanical operator 24 V for swing gates weighing up to 400 kg and 3 m long.
Main Functions:
- Automatic re-closing, fast closing, partial opening, deadman feature.
Main Features:
- Built for intensive use
- Protected worm-drive box
- Magnetic limiting switches
- Obstacle detection
- IP 44 protection level
Specifications:
| Control unit | Thalia |
| Board Power Supply | 230 V |
| Operator Type | Electromechanically operated swing gate |
| Max. weight of door/gate wing | 400 kg |
| Max. width of door/gate wing | 3 m |
| Max. length gate panel without electric lock | 2 m |
| Motor Voltage | 24 V |
| Power consumption | 40 W |
| Thrust and traction force | 2000 N |
| Useful rod stroke | 250 mm |
| Maximum angle | 1190 |
| Type of limit switch | Magnetic |
| Slowdown | Yes |
| Impact reaction | D-Track |
| Locking | Mechanical |
| Release | Personal key |
| Max. opening cycles per hour | 30 |
| Environmental conditions | -20 oC to + 55oC |
| Protection Rating | IP 44 |

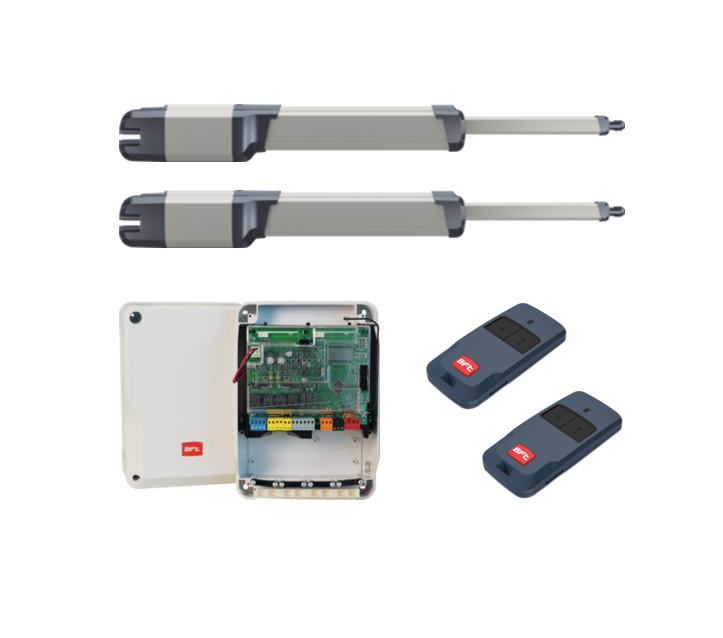

Kit Contains:
- 1 x THALIA Control Board Unit

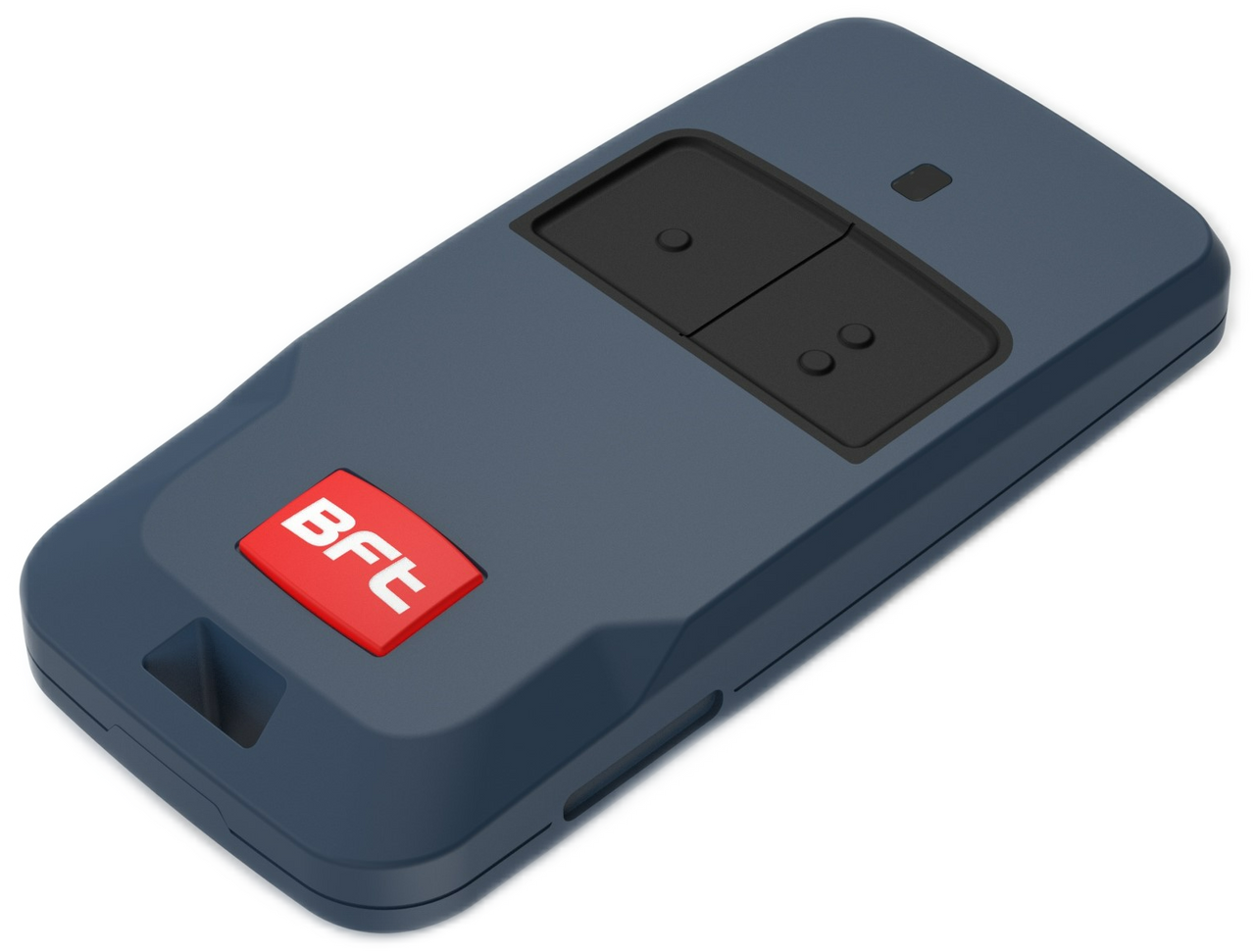

- 2 x BFT Mitto Cool Transmitters

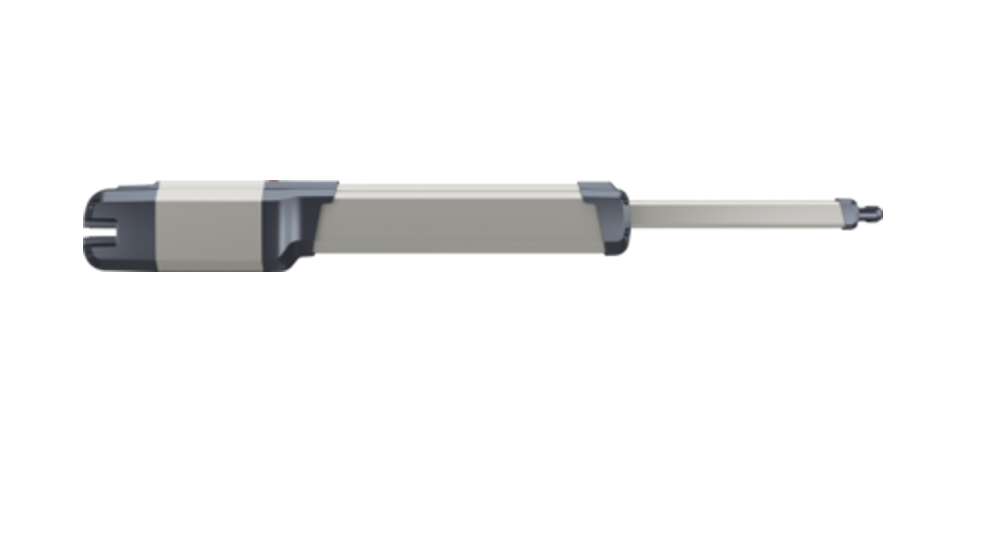

- 2 x BFT KUSTOS BT B25 Operator
