BFT Oro Hydraulic Swing Gate Single Opener Kit
Extremely compact and sturdy hydraulic operators suitable for residential and small condominium use. Capable of automating swing gates leaves up to 2.5m wide and weighting up to 200Kg. Available in both reversible and irreversible versions. Maximum precision in force control guaranteed by by-pass valves.

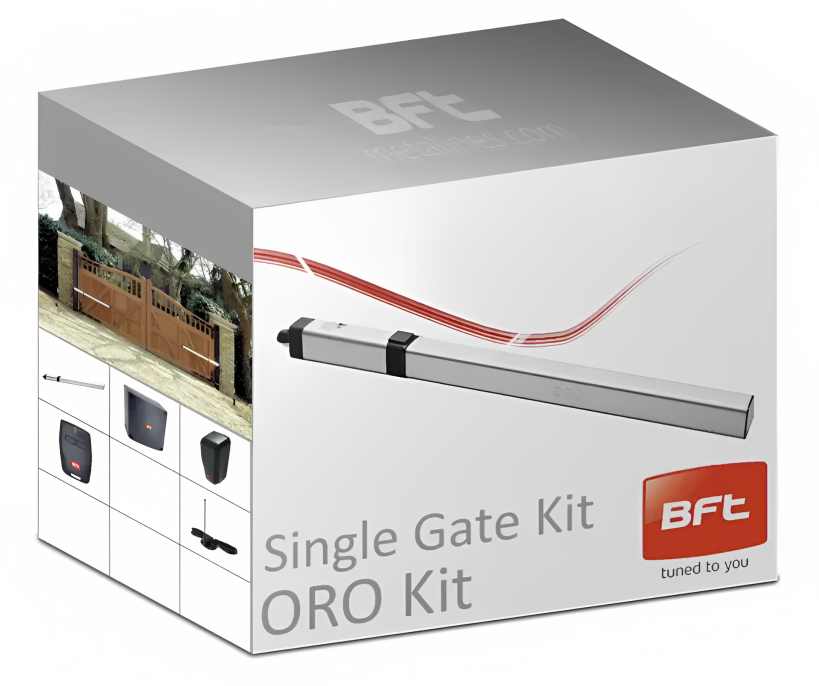

Kit Includes:
- 1 x BFT "ORO" Hydraulic Swing Gate Opener
- 1 x BFT Rigel 6 Control Panel
- 2 x BFT Mitto 2 Remote Controls
- 1 x Pair of Compacta 180 Deg Photocells
- 1 x Radio Antenna
Features:
- EE Ready
- EE Link
- Dynamic Path Tracking
- 24V
- U-Link
Technological Specifications:
| Control Unit | RIGEL 6 |
| Board Power Supply | 230V |
| Motor Voltage | 230V |
| Power Consumption | 240W |
| Max. Width of Door/Gate Wing | 1.2m |
| Max. Weight of Door/Gate Wing | 180Kg |
| Useful Rod Stroke | 250mm |
| Maximum Angle | 112 Deg |
| Cycle Time | 20s |
| Type of Limit Switch | Work Time |
| Slowdown | No |
| Locking | Hydraulic Closing |
| Release | Triangle Key |
| Impact Reaction | Hydraulic Clutch |
| Frequency of Use | Semi-Intensive |
| Protection Rating | IP55 |
| Environmental Conditions | -10 To +60 Deg C |
