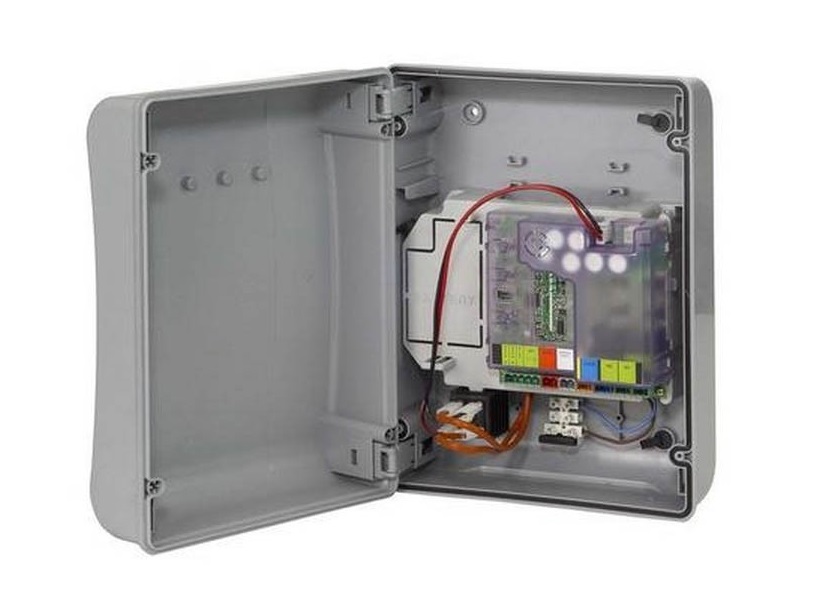

FAAC E024S BUS Control Board
FAAC E024S BUS Control Board
Technical Specifications
Power supply voltage | 230Vac (+6%-10%) 55Hz |
Absorbed power | 4W |
Motor max load | 150W x 2 |
Accessories max current (+24V) | 250mA |
BUS Accessories max current | 400mA |
Operating temperature | -20°C ÷ +55°C |
Fuses | F1 = self-resetting, F2 = T2A-250V |
Pause time | Varies (max 10) |
Terminal board inputs | Open A Open B Stop BUS (I/O) |
Connector inputs | Power supply Battery Module XF433 or XF868 |
Terminal board outputs | Motors Flashing lamp Power supply to accessories Electric lock Service light contact (90 sec fixed) |
