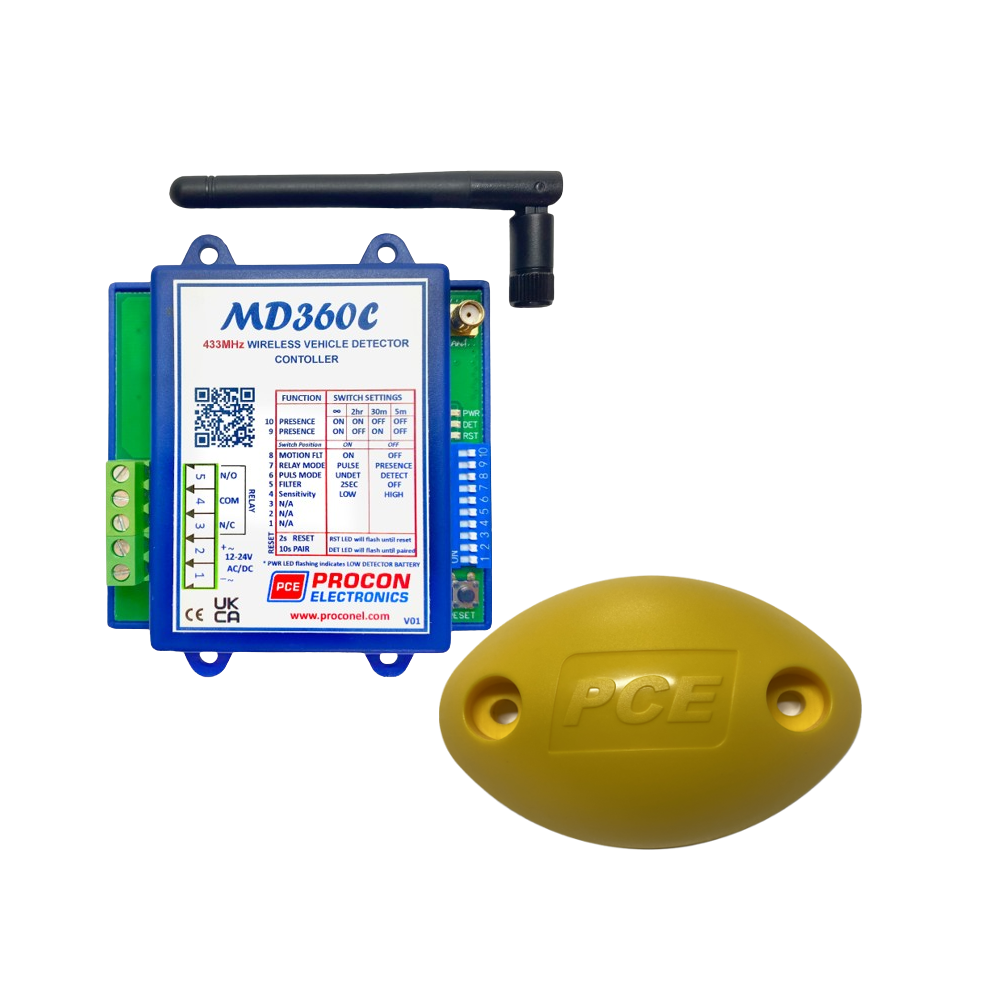

MD360D/MD360C – 433MHz Wireless Magnetic Field Vehicle Detector Dome and Controller Kit
The MD360 series has been designed for parking and access control applications and is a cost-effective wireless solution for detecting vehicles to facilitate the automatic opening of security gates.
The MD360 Series Wireless Vehicle Detectors Combine magneto resistive sensor technology with a low power battery operated radio transceiver. This combination results in a self-contained wireless vehicle detector that does not require a loop or any cables to be run to it making installation times quicker.
The wireless detectors sensor detects changes in the earth’s magnetic field due to the presence of a vehicle, which results in a detect signal being output to the MD360 Controller.
The MD360D ‘Dome’ is the rugged surface mount variant which simply bolts to the surface of the road using the supplied hardware.
The MD360C (Controller) is a wireless control unit which enables configuration and output of the MD360 Series wireless vehicle detectors. The controller features DIP switches for easy configuration and LED’s for visual indication of the operation of the paired Wireless Detector. A relay output switches ON when a vehicle is detected.
Features
Wireless Connectivity
- Up to 50 metres range (Line of sight).
- ETSI EN300-220 Compliant.
Battery Life (MD360 detectors only)
- Up to 5 years battery life @ 25? (Calculated @ 1 detect per minute).
Reset Switch
- Reset the Wireless Detector from the Controller (Detector adjusts to the environment becoming ready
for vehicle detection). - Easily pair MD360 Detector to Controller (Note: Only one detector can be paired to a controller at one
time).
Switch Selectable Sensitivity
- Two sensitivity settings are available on the switches to allow for flexibility in
configuration.
Filter Option
- Prevent false detection of small or fast-moving objects.
Relay Mode
- Configure the relay to operate in presence or pulse mode.
Pulse Relay Selection
- Configure relay to pulse on vehicle detect or undetect.
Motion Filter
- Only trigger output once the vehicle has stopped moving for at least 1 second.
Presence Settings
- Wireless detector will reset after selected timeout: 5min, 30min, 2hr and no-timeout.
Technical Specifications – MD360C (Controller)
Power supply | 12 - 24VAC/DC 50/60Hz 45mA |
Radio Specifications | Frequency: 433.92 MHz
Power: 10 dBm Modulation: 2FSK Bandwidth: 250 kHz Antenna: 1.8 dB Dipole Antenna (Supplied with controller) |
Presence/Pulse Relay | Change over contact 0.5A/220VAC |
Response time | Approximately 1s after vehicle enters Puck area. |
Indicators | LED indicators show: Power, Detect and Reset State. |
Connector | 5 Way Screw terminal block. |
Dimensions | 105mm X 90mm X 22mm |
Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C |
Technical Specifications – MD360 Wireless Vehicle Detectors
Power | 2x 3.6V 6800 mAh Li-SOCL2 |
Radio Specifications | Frequency: 433.92 MHz
Power: 10 dBm Modulation: 2FSK Bandwidth: 250 kHz Antenna: PCB Trace |
Battery Life | Up to 5 years at 1 detect per minute. |
Response time | Approximately 1s after vehicle enters Puck area. |
Sensing Distance | The Detector should be placed under the vehicle in its path of travel. Maximum Sensing distance is 1.0 m approximately. |
Environmental tracking | Automatic Compensation |
Dimensions | Puck : Ø 64mm X 38mm
Dome: 140mm X 100mm X 38mm (L x W x H) |
Weight | Puck: 160g
Dome: 230g |
IP Rating | IP68 |
Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C |
