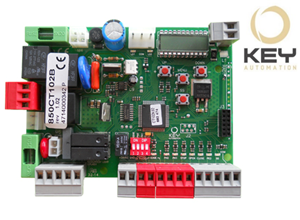

CT102 230V Control Unit
* Roll over the image to zoom in
230Vac Control Units for One Motor
- Same programming logic for all control boards CT102, CT202, CT102 24, CT202 24 with run inversion via software
- Amperometric obstacle detection with run inversion
- Standard or programmable slowdown in opening and closing
- Pedestrian programmable automatic closing
- Separate OPEN - CLOSE inputs and PP - Pedestrian input
- Safety edge 8,2K ohm NC - STOP - photo 1 and photo 2
- Inputs and safety devices LED visualization
- Flashing light output fixed or flashing
- LED courtesy light output or spia open gate indicator
- 3 digit display
- Optional phototest
- Optional test for safety edge
- New plug-in radio receiver 4 channels RX4X
Specifications:
| Model Number | CT202 24 |
| Input Power (Vac/Hz) | 230/50-60 |
| Output Power Accessories (Vac/dc) | 24 |
| Max Motor Power (W) | 700 |
| Max Working Time (sec) | adjustable |
| Max Pause Time (sec) | 0-900 |
| Obstacle Detection | Yes |
| Protection Degree | - |
| Dimensions (LxWxH) | 120x90x30 |
| Operating Temperature (°C) | -20 +55 |
