Centsys D10 Turbo 230V Slider Gate Motor

Centsys D10 Turbo 230V Slider Gate Motor

Centsys D10 Turbo 230V Slider Gate Motor

Roll over* Roll over the image to zoom in

$1,715.00

Quantity: This product has sold out.

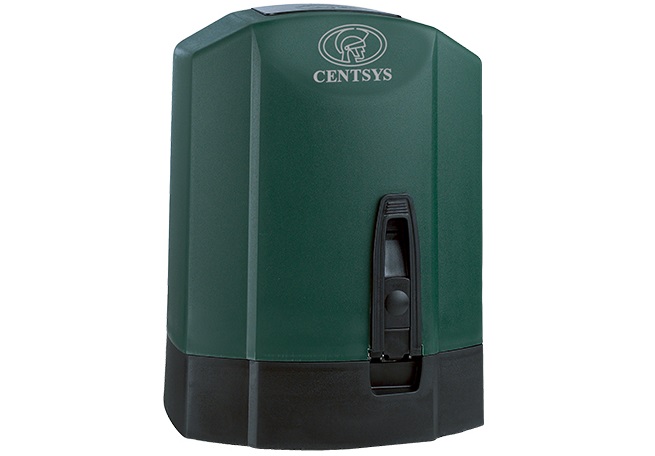

Centsys D10 Turbo 230V Slider Gate Motor

The lightning-fast D10 Turbo industrial sliding gate motor is the perfect solution for speed freaks to get their fix. Whether you're just in a hurry, or seriously concerned about your security, there is no time wasted with the D10 Turbo at your gate. This beast will move a gate weighing up to 1000kg and, depending on the weight of the gate, can reach speeds of up to 50 metres per minute.

Main Features:

- Turbo speed for greater security and convenience

- Battery backup

- Intelligent speed control

- High duty cycle capability

- Smooth acceleration and deceleration

- Multiple operating features, including Intruder-detection Alarm Modes (a world first).

- Exceptionally easy system setup via LCD user interface

- Onboard code-hopping multichannel receiver with selective add and delete

- Integrated ChronoGuard timer functionality (a world first).

- Be alerted of gate activity via SMS by connecting a  GSM device (available separately).

Kit Contains:

-          Centsys D10 Turbo 1000kg (High Speed) Industrial Operator 230V

-          Multichannel Nova Receiver

-          ChronoGuard Timer

Note: Excludes Battery and Rack

Nylon Steel-reinforced Gear Rack 1.0m can be purchased here.

Optional Accessories

Solar Panel

- Photocell sensor (Wired Wireless)

- Keypads (Wired Wireless)

G-Ultra



Technical specifications:

Input Voltage

220V - 240 AC

Current Consumption

8A

Motor push force - starting

20kgf

Motor push force - rated

15kgf

Gate length - maximum

100m

Manual Override

Lockable with key release

Gate mass (maximum)

Varies with speed

Gate speed (varies with load)

40 - 50m/min

Receiver Frequency

433MHz

Degree of Protection

IP55

Operating ambient temperature

-15°C to +50°C

Dimensions 355mm wide x 288mm deep x 485mm high
